City University of Pasay
Design of Computer Networks <> Asia Pacific College
Network Upgrade Project
Secure. Cost effective. Fast.
Project Objective
To come up with a network design and setup that improves the current network infrastructure of the local state university.
Information
Location
Client Data
- Pasadena Street, Pasay, Pasadena, Pasay, Metro Manila
- 14°32'38"N 120°59'43"E
- 4 (Four)
- IT infrastructure is currently managed by Pasay City ICTO
- Cartesian (three-dimensional)*
Address
Coordinates
Storey:
IT Personel:
Dimension:

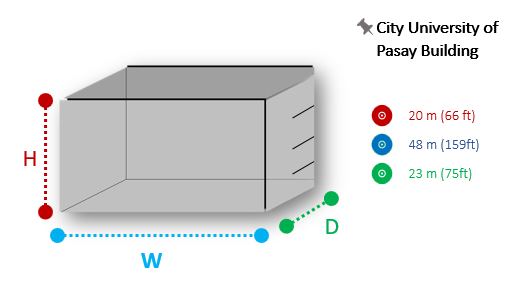

School Dimension
Step by step solution
Plan

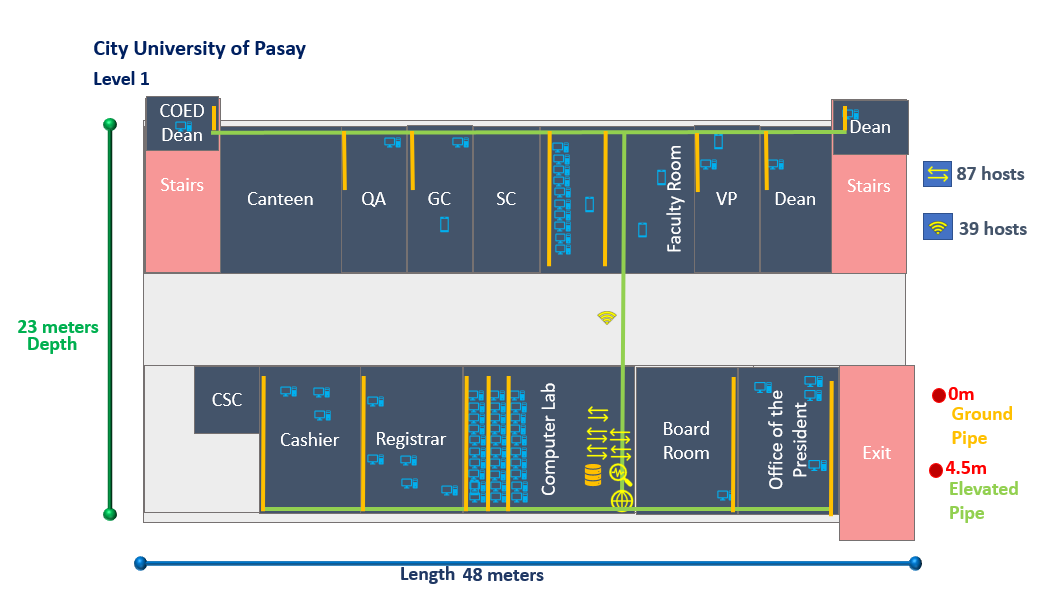

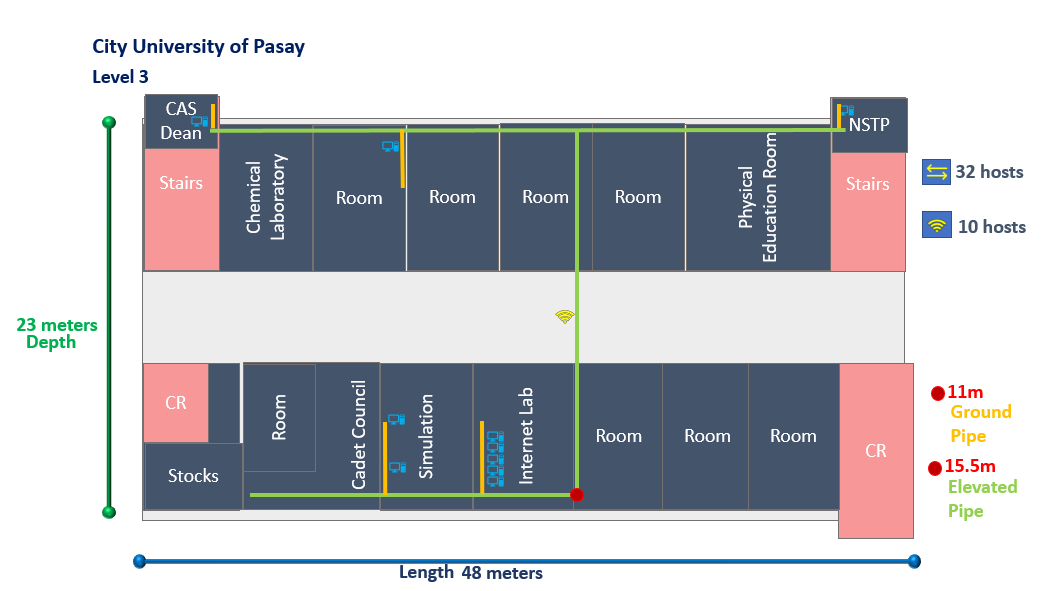

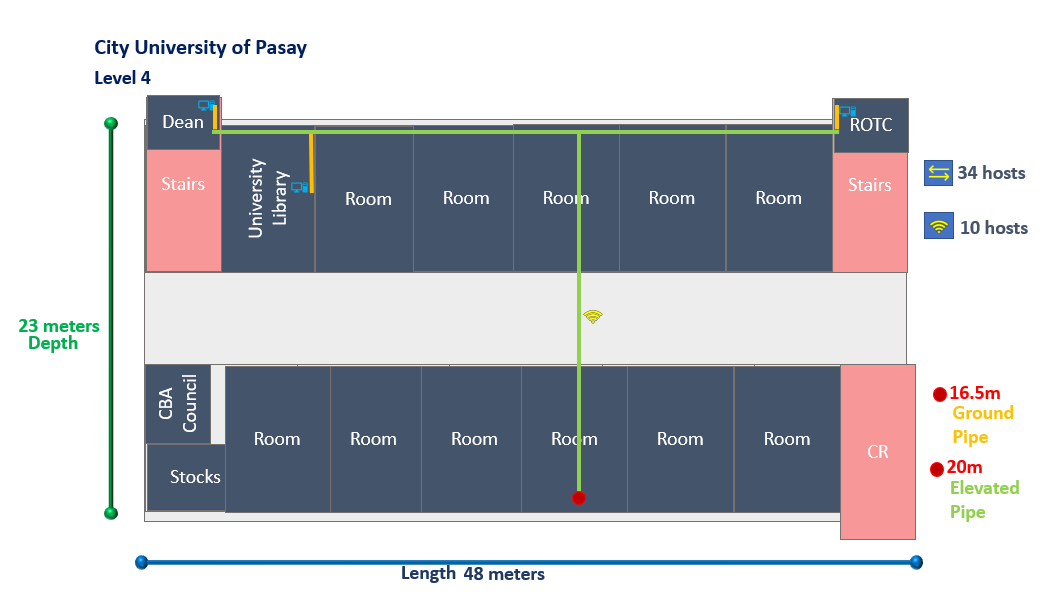

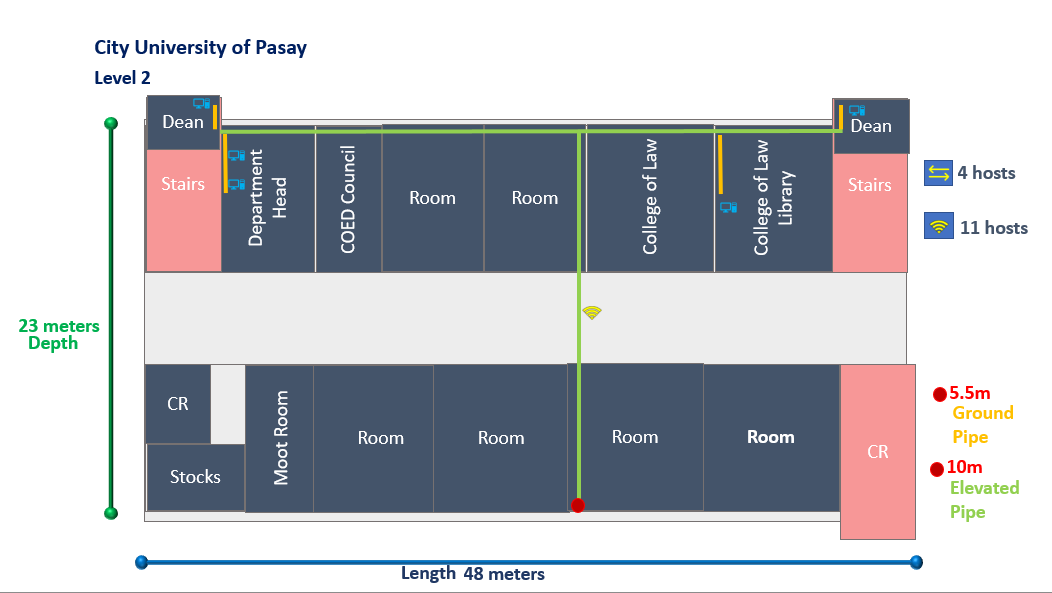

Floor Plan
Cabling Plan [A]
Requirements

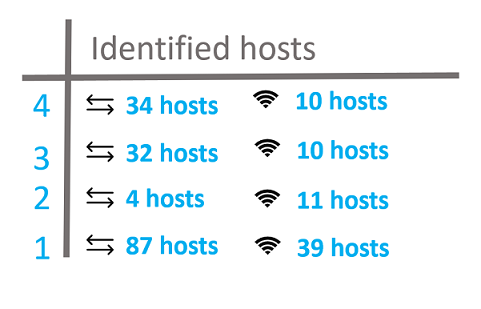

Hosts
Wired = 157 | Wireless = 70 | Total Host = 227

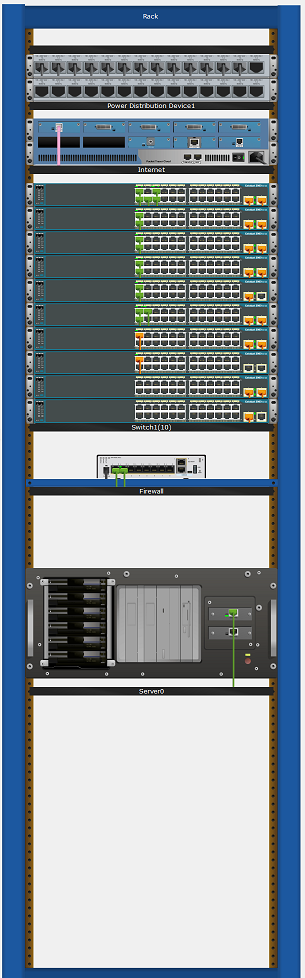

Hardware + Software

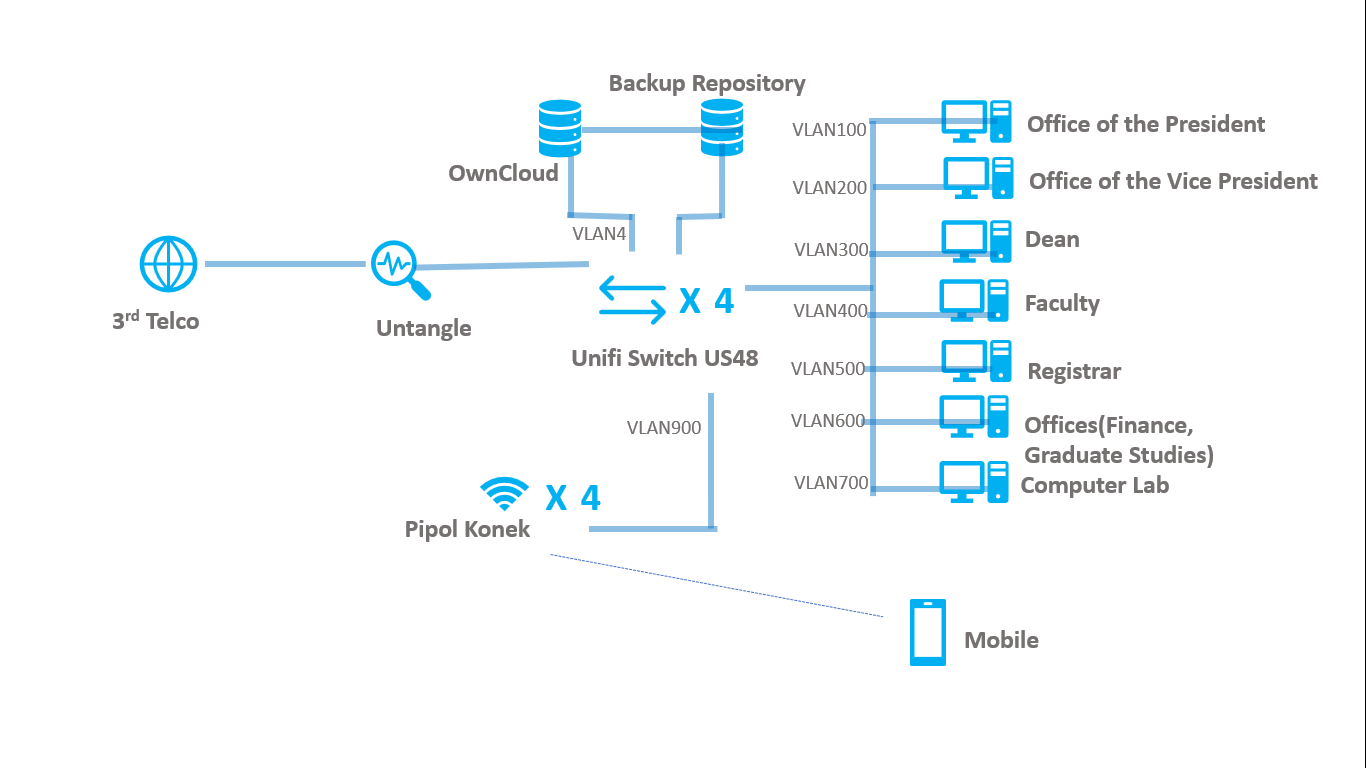

Setup
IP Addressing
Wired
Network ID: 192.168.1.0
Range: 192.168.1.1 - 192.168.1.254
Broadcast: 192.168.1.255
CIDR: /24
Subnet: 255.255.255.0
Wireless
Network ID: 192.168.2.0
Range: 192.168.2.1 - 192.168.2.254
Broadcast: 192.168.2.255
CIDR: /24
Subnet: 255.255.255.0
Recommendations
Cabling Plan [B]
Source + Document
Laws
Poor law implementation.
Republic Act No. 10173 – Data Privacy Act of 2012
Republic Act No. 10929 – Free Internet Access in Public Places Act
Republic Act No. 10173 – Data Privacy Act of 2012
Republic Act No. 10929 – Free Internet Access in Public Places Act
Our network design is comliant with the exiting national law.
Human Resource
IT Infrastructure of the school is managed by ICTO.
We recommend to have a inhouse IT to handle network operations and cybersecurity
We recommend to have a inhouse IT to handle network operations and cybersecurity
Project Funding
School may use PPP to implement the project
School may also utilize government agencies like DICT [Pipol Konek]
School may also utilize government agencies like DICT [Pipol Konek]
